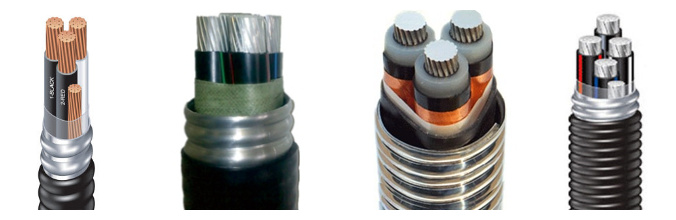

Interlocked MC XLPE Armoured Cable – AC/ ACWU90 / HL-XHHW-2 Cable

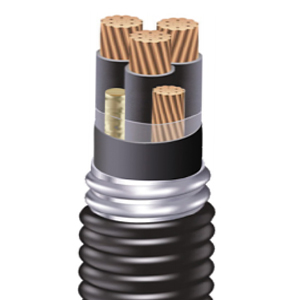

XHHW-2 MC-HL Or Cu/XLPE/MC PVC Cable

Voltage: 0.6/1KV
Conductor: Bare,Annealed, Standed Copper Conductor
Core: 2,3,4,5 and other.
Insulation: XLPE
Amoured: Aluminum Welded Corrugated Armour
Sheath: PVC
Specification: IEC60502-1, ICEA S-95, UL 44
AWG: 1/0,2/0,4/0,4,6,8,10,12,14,16AWG
MCM: 250,350,500,750, 1000MCM
Application: Indoor and outer door(wet or dry location), Branch circuits for power, ligting, control and signaling, as aerial cable on a messenger, installation direct burial.

Get quote by email: sales@huadongcables.com

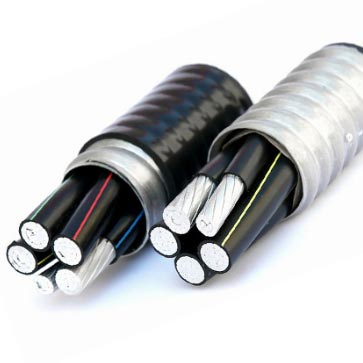

ACWU90 (–40°C) XLPE 600 Volts 90°C

Standard :  CSA C22.2 N° 51
Conductor material: Aluminum/Aluminum Alloy
Armoured: Interlocked Armored with Aluminum Alloy/Unarmoured
Maximum operating voltage: 600V
Maximum operating temperature: 90°C
Application: For exposed and concealed wiring in dry or wet locations and where exposed to the weather.For use in ventilated, non-ventilated and ladder type cable trays in wet and dry locations.
For direct earth burial (with protection as required by Inspection Authority).
For service entrance above or below ground.
For use in hazardous locations with approved connectors.

Get quote by email: sales@huadongcables.com
