Application: the crane cable is a term used to cover a range of specialist cables powering and controlling cranes, hoists, festoons, conveyors and gantries. Used across heavy industry including mining and marine, they must be robust and capable of handling both torsional and tensile stresses simultaneously.
Recommended common cables for large machinery

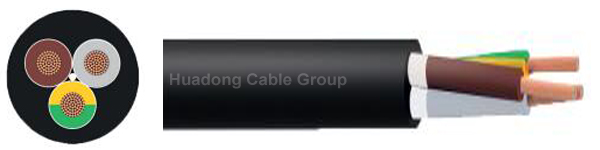

PUR-HF Low Voltage Chain Festoon Cable
Voltage Rating (Uo/U): 0.6/1kV
Conductor: Class 5 flexible tinned copper
Insulation: HF (Halogen Free) compound based on polyester
Outer Sheath:
PUR HFFR (Polyurethane – Halogen Free, Flame Retardant)
Temperature Rating:
Fixed installation: -50°C to +80°C
Mobile operation: -40°C to +80°C
Cores: 3,4,5
Section aera: 1.5mm2-185mm2
Application: For use as energy and control cable in festoon systems and as a chain cable. Also suitable as drum reeling cable under moderate mechanical stresses, torsion, tension and torque.

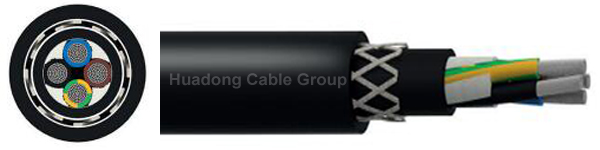

PUR Spreader LV Reeling Cable
Voltage Rating (Uo/U): 0.6/1kV
Conductor: Class 5 flexible tinned copper
Insulation: Halogen free compound based on polyester
Lay Up: Central Aramid strength member, cores in concentric layers
Inner and Outer Sheath: PUR-HF (Halogen Free, flame retardant Polyurethane)
Braiding: Anti-twisting element – Aramid yarns braiding
Sheath Colour: Black, Yellow or Orange.
Reeling Application: Up to 240m/min horiz. / Up to 180m/min vertica
Application: Vertical reeling cable under high mechanical stresses, torsion, tension and torque. Mainly used for spreader reeling applications. Strength member to increase tensile load, acceleration and speed

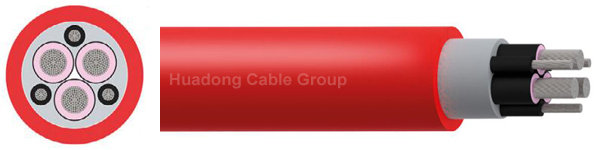

Medium Voltage Material Handling Equipment (N)TSCGEWÖU Cable
Voltage Rating (Uo/U):
3.6/6kV; 6/10kV, 8.7/15kV, 12/20kV.
Phase/Earth Conductor:
Class 5 flexible tinned copper/Copper
Insulation: Rubber compound
Inner Sheath: Rubber compound
Section area: 25-185mm2
Cores: 3+3
Maximum Short Circuit Temperature: 250°C
Mobile Condition: +25°C to + 80°C
Static Condition: +40°C to + 80°C
Application: Flexible cable for fixed distribution lines in mines and alongside material handling equipment. Suitable for indoor and outdoor applications
Get quote by email: sales@huadongcables.com
Crane Cable Product Range
Some of the crane cables most frequently specified within our portfolio include
| Crane Cable Product | Application Overview |
|---|---|
| YSLTOE cable | Spreader cable for gravity-fed collector buckets |

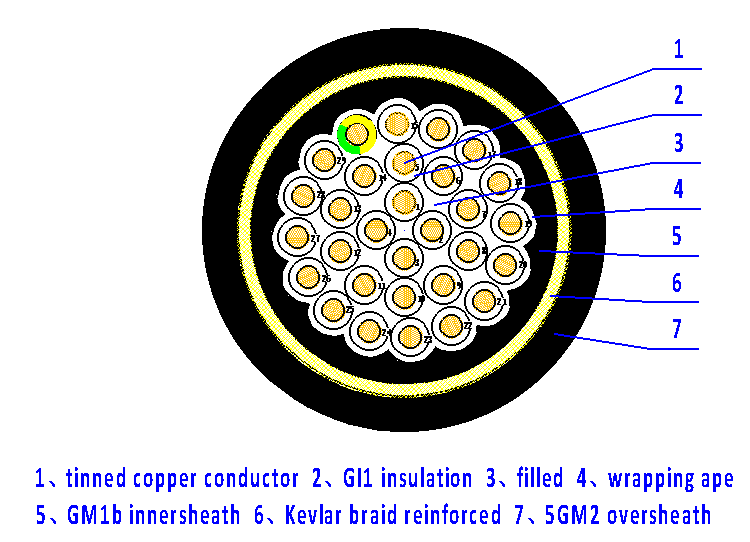

| NSHTOU cable | Drum winding cable |
| (N)SHTOU cable | Drum winding cable with increased tensile strength |
| (N)SHTOU PUR cable | Drum winding cable with Polyurethane sheathing |
| (N)GRDGOU cable | Festoon cable |
| PUR-HF Festoon cable | Festoon cables including EMC protected cables |
- Flexible PVC/Rubber Sheath Welding Cable
- Waterproof Subermersbile Pump Cable
- Resistance Oil and Water SJOOW/SOOW/SJO Cable
- H07RN-F Heave Duty Mobile Equipmen Rubber Cable
- SJOOW/SOOW/SJO Cable
- Trailing Cable with Optical Fiber Composite Cable
- Reeling/Festoon Crane Cable
- Welding Cable
- Pendant Hoist Cable
- Spreader Basket Cable
- PNCT Rubber Cable Used for Machine Equipment
- Rubber Cable Products List
Get quote by email: sales@huadongcables.com
Towline cable pvc insulated for crane cable
1. conductor: Bare or Tinned stranded copper conductor, UL758
2. insulation: special PVC
3. jacket:PUR
4.Fixed Installation: -40°C to +90°C
Movable Installation: -5°C to +80°C
Application:
PUR cable for static application in ground, in water, within facilities, in cable canals, in concrete, where heavier mechanical stresses are not expected, and the cable has to be protected against mechanical damages, also in conditions where cables are not exposed to heavier tensile strains. Used in electric power plants, transformer stations, industrial plants, metropolitan networks and in other electric plants where heavier current and thermal loads are expected.

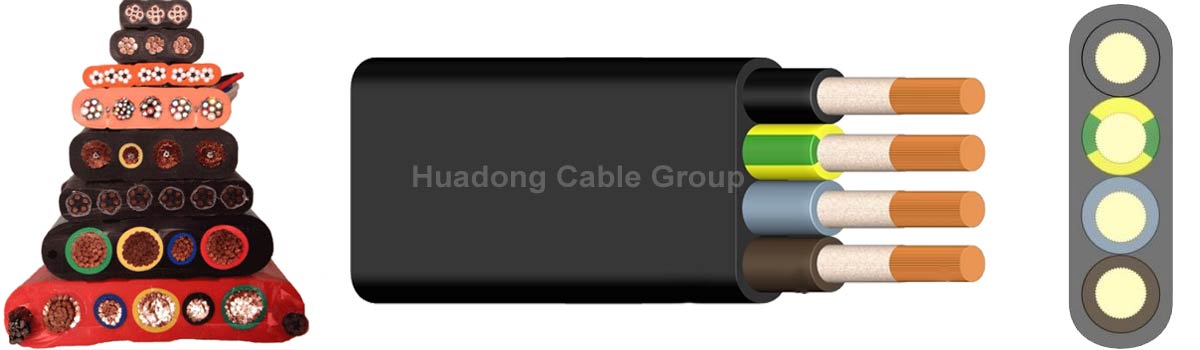

Flat Reeling/Festoon Rubber Crane Cable
Voltage: 300/500V; 450/750V; 0.6/1kv
Types: H07VVH6-F, YFFB, HT-PNCT; HT-PNCT-R;HT-PNCT-F,etc. other types can be produced according to client’s.
Conductor: Class 5 Copper/Tinned Copper
Insulation: Rubber/EPR
Cores: Multi-Core
Ingernation Standard: VDE0482,part 265-2-1 resp.EN50265-2-1 and IEC603321
Application: For the connection of mobile parts of machine tools, conveyor plants andlarge-scale equipment, if the cable is exposed to bends in only one level (cable trolley). In dry, damp and wet rooms as well as outdoors.
Get quote by email: sales@huadongcables.com

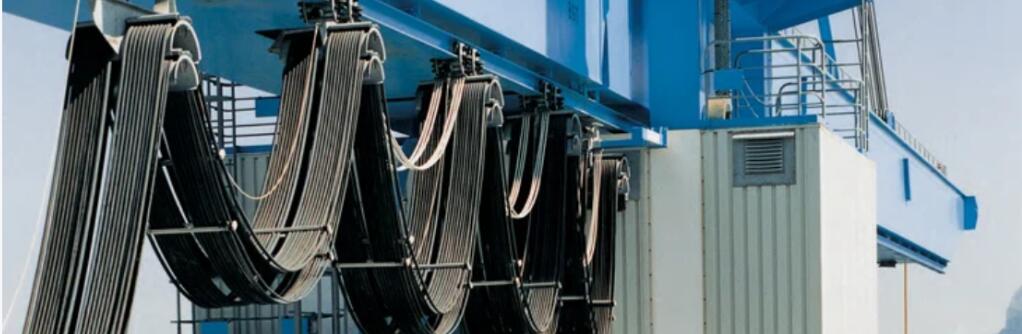

The diagram of crane cable application
