Huadong Cable Group provides quality and reliability logging cable with proven for applications seismic instrumentation and custom cables for harsh environments to depths of 6,000 meters. Huadong Cable wireline products used in logging, oil well, Gas, perforating, and downhole good applications worldwide.
Get a quote by email: sales@huadongcables.com

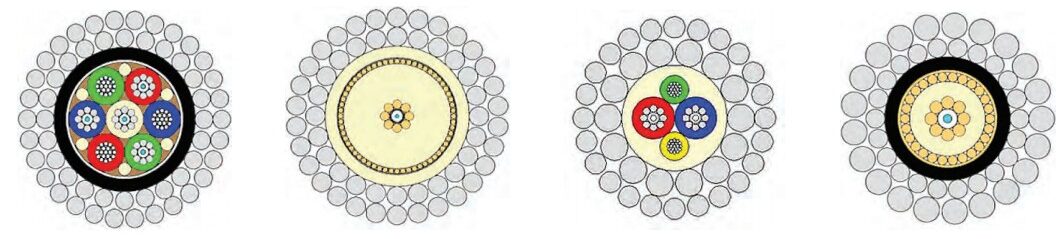

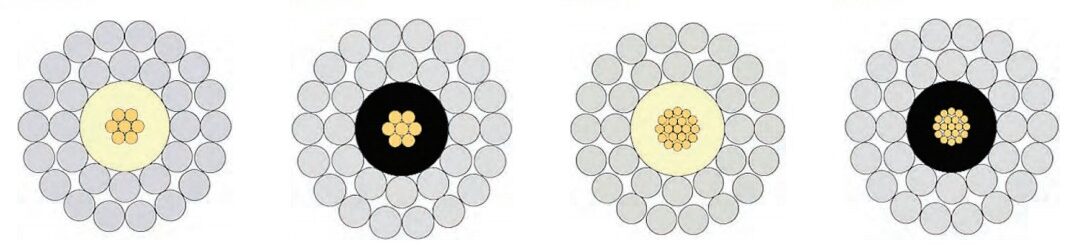

7/32” (5.69 mm) Monoconductor
Cable Diameter: 0.224” +0.005” – 0.002” (5.69mm +0.13mm -0.05mm)
Minimum Sheave Diameter: 14” (36cm)
Cable Stretch Coefficient: 2.2 ft/kft/Klbs (2.5 m/Km/5KN)
Maximum Conductor Voltage: 1,200 VDC
Conductor AWG Rating: 16
Minimum Insulation Resistance: 1,500 MegaΩ/Kft @ 1000VDC (457 Mega Ω/Km @ 1000VDC)
Armor Electrical Resistance: 4.3 Ω/Kft (14.1 Ω/Km)
5/16″ (8.18 mm) Monoconductor
Cable Diameter: 0.322″ +0.005″ – 0.002″ (8.18 mm +0.13 mm -0.05mm)
Minimum Sheave Diameter: 18″ (46 cm)
Cable Stretch Coefficient: 1.2 ft/Kft/Klbs (1.35 m/Km/5KN)
Maximum Conductor Voltage: 1,500 VDC
Conductor AWG Rating: 15
Minimum Insulation Resistance: 1,500 MegaΩ/Kft @ 1,000 VDC (457 MegaΩ/Km @ 1000VDC)
Armor Electrical Resistance: 2.1 Ω/Kft (6.9 Ω/Km)
9/32” (7.32 mm) Monoconductor
Cable Diameter: 0.288” +0.005” – 0.002” (7.32mm + 0.13mm -0.05mm)
Minimum Sheave Diameter: 16” (41 cm)
Cable Stretch Coefficient: 1.55 ft/Kft/Klbs (1.74 m/Km/5KN)
Maximum Conductor Voltage: 1,500 VDC
Conductor AWG Rating: 15
Minimum Insulation Resistance: 1,500 MegaΩ/Kft @ 1000VDC (457 MegaΩ/Km @ 1000VDC)
Armor Electrical Resistance: 2.8 Ω/Kft (9.2 Ω/Km)
7/32” (8.18 mm) Monoconductor parameter data
| Core Description | Cable Weight | ||||||
| Temp Rating | Plastic Type | Insulation Thickness | Copper Construction | Res Typical | O.D. Each | In Air | In H2O |
| °F | in | in | Ω/Kft | in | lbs/Kft | ||
| °C | mm | mm | Ω/Km | mm | Kg/Km | ||
| 300* | Poly | 0.042 | 19×0.0142 | 2.8 | 0.155 | 187 | 155 |
| 149* | 1.067 | 19×0.361 | 9.2 | 3.937 | 278 | 230 | |
| 500* | ETFE | 0.0175 | 19×0.0142 | 2.8 | 0.155 | 194 | 160 |
| 260* | 0.445 | 19×0.361 | 9.2 | 3.048 | 288 | 238 | |
| 500* | FEP | 0.0245 | 19×0.0142 | 2.8 | 0.12 | 194 | 160 |
| 260* | 0.622 | 19×0.361 | 9.2 | 3.048 | 288 | 238 | |
Get a quote by email: sales@huadongcables.com
7/32” (5.69 mm) Monoconductor parameter data
| Core Description | Cable Weight | |||||||
| Temp Rating | Plastic Type | Insulation Thickness | Copper Construction | Res Typical | Cap Typical | O.D. Each | In Air | In H2O |
| °F | in | in | Ω/Kft | pf/ft | in | lbs/Kft | ||
| °C | mm | mm | Ω/Km | pf/m | mm | Kg/Km | ||
| 300* | Poly | 0.0245 | 19×0.0119 | 4.1 | 60 | 0.108 | 91 | 75 |
| 149* | 0.622 | 19×0.302 | 13.5 | 197 | 2.743 | 136 | 112 | |
| 420* | ETFE | 0.0115 | 19×0.0119 | 4.1 | 61 | 0.108 | 92 | 76 |
| 216* | 0.292 | 19×0.302 | 13.5 | 200 | 2.743 | 137 | 114 | |
| 420* | TPX | 0.013 | 19×0.0119 | 41 | 61 | 0.085 | 92 | 76 |
| 216* | 0.33 | 19×0.302 | 13.5 | 200 | 2.159 | 137 | 114 | |
| 500* | ETFE | 0.0115 | 19×0.0119 | 4.1 | 58 | 0.108 | 95 | 78 |
| 260* | 0.292 | 19×0.302 | 13.5 | 190 | 2.743 | 140 | 116 | |
| 500* | FEP | 0.013 | 19×0.0119 | 4.1 | 58 | 0.085 | 95 | 78 |
| 260* | 0.33 | 19×0.302 | 13.5 | 190 | 2.159 | 140 | 116 | |
Get a quote by email: sales@huadongcables.com
7/32” (7.32 mm) Monoconductor parameter data
| Core Description | Cable Weight | |||||||
| Temp Rating | Plastic Type | Insulation Thickness | Copper Construction | Res Typical | Cap Typical | O.D. Each | In Air | In H2O |
| °F | in | in | Ω/Kft | pf/ft | in | lbs/Kft | ||
| °C | mm | mm | Ω/Km | pf/m | mm | Kg/Km | ||
| 500* | ETFE | 0.019 | 19×0.0142 | 2.8 | 50 | 0.136 | 157 | 130 |
| 260* | 0.483 | 19×0.361 | 9.2 | 180 | 3.454 | 234 | 234 | |
| 500* | FEP | 0.0135 | 19×0.0142 | 2.8 | 50 | 0.098 | 157 | 130 |
| 260* | 0.343 | 19×0.361 | 9.2 | 180 | 2.489 | 234 | 193 | |
| 300* | Poly | 0.0325 | 19×0.0142 | 2.8 | 56 | 0.136 | 152 | 126 |
| 149* | 0.826 | 19×0.361 | 9.2 | 184 | 3.454 | 226 | 187 | |
| 420* | Camtane | 0.0135 | 19×0.0142 | 2.8 | 55 | 0.098 | 155 | 128 |
| 216* | 0.343 | 19×0.361 | 9.2 | 184 | 2.489 | 230 | 190 | |
| 420* | ETFE | 0.019 | 19×0.0142 | 2.8 | 55 | 0.136 | 155 | 128 |
| 216* | 0.483 | 19×0.361 | 9.2 | 184 | 3.454 | 230 | 190 | |
