CRANE SPREADER REELING CABLE is specifically designed and manufactured to withstand abusive environments, high hoist and trolley speeds, and extreme mechanical stresses predominant on vertical reeling systems found in new generation ships to shore container cranes.We can customize all kinds of special cables according to customer’s needs.
H07RN-F Cable 2PNCT Cable SJOOW/SOOW/SJO Cable Submersible Pump Cable Trailing Cable with Optical Fiber Composite Reeling/Festoon Crane Cable Welding Cable Pendant Hoist Cable Elevator Traveling Cable Spreader Basket Cable VFD Cable

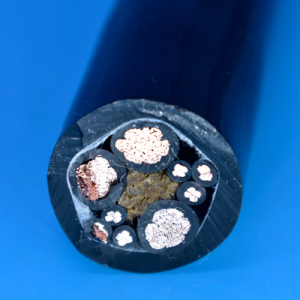

3+6 cores spreader-flex cable round YSLTK YSLYCYK spreader hoisting cable
Conductor: Fine stranded bare/tinned copper
Insulation: PE (polyethylene)
Core color: TBD acc. to DIN 47100 standard.
Outer sheath: PUR (polyurethane)
Sheath color: Grey(RAL 7001), Black(RAL 9005) or Orange(RAL 2003)
Rated voltage: 0.6/1KV(600/1000V)
Max.permissble operating voltage AC: 0.7/1.2KV
Max.permissble operating voltage DC: 0.9/1.8KV
AC Test Voltage: 3.5KV(5 Min.)
Temperature range: -40℃ till +80℃
Operating temperature: -40℃ till +80℃
Max. tensile load on the conductor: 15N/mm2
Min.bending radius: Acc.to VDE 0298 part 3
Travel speed: Basket operation:160m/min
